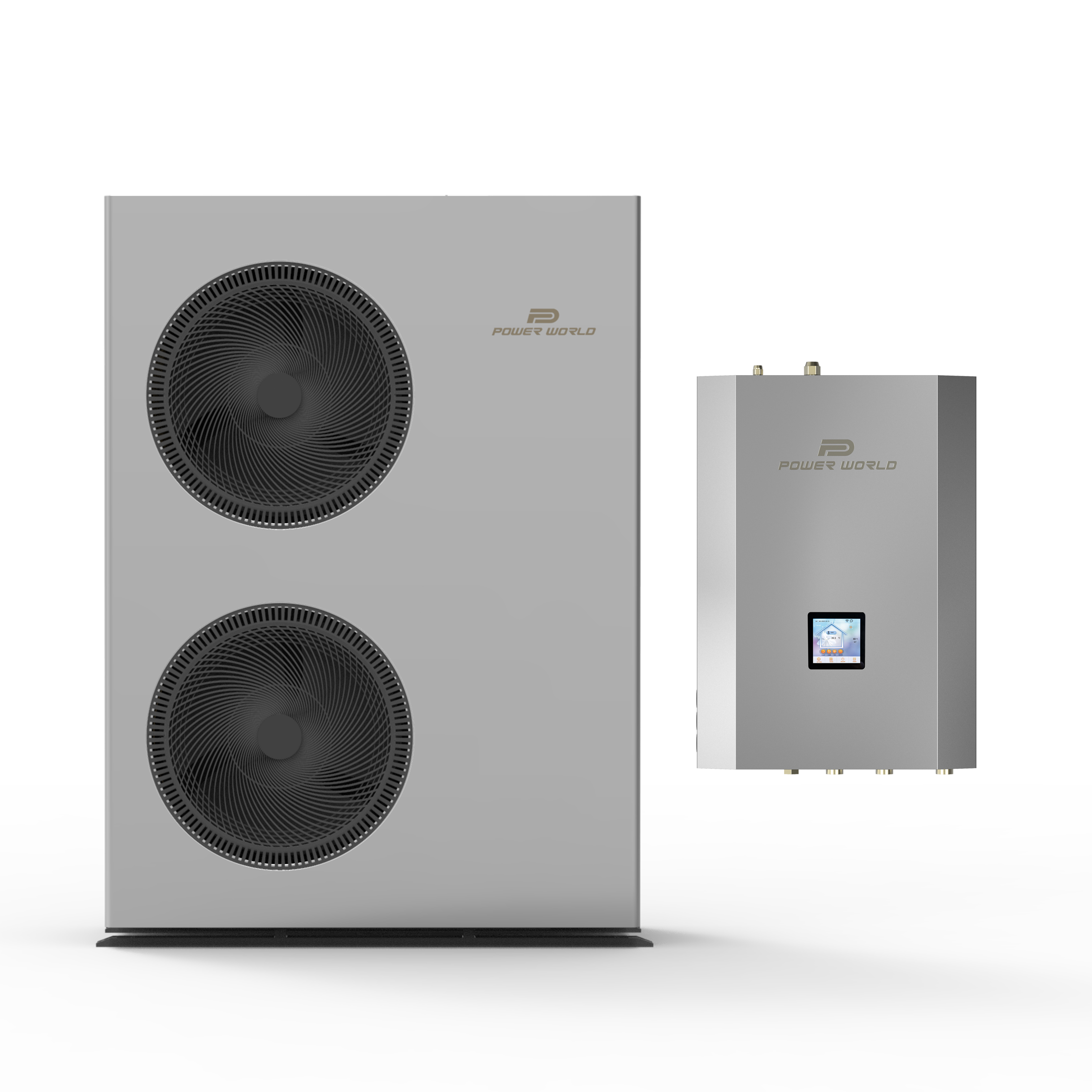

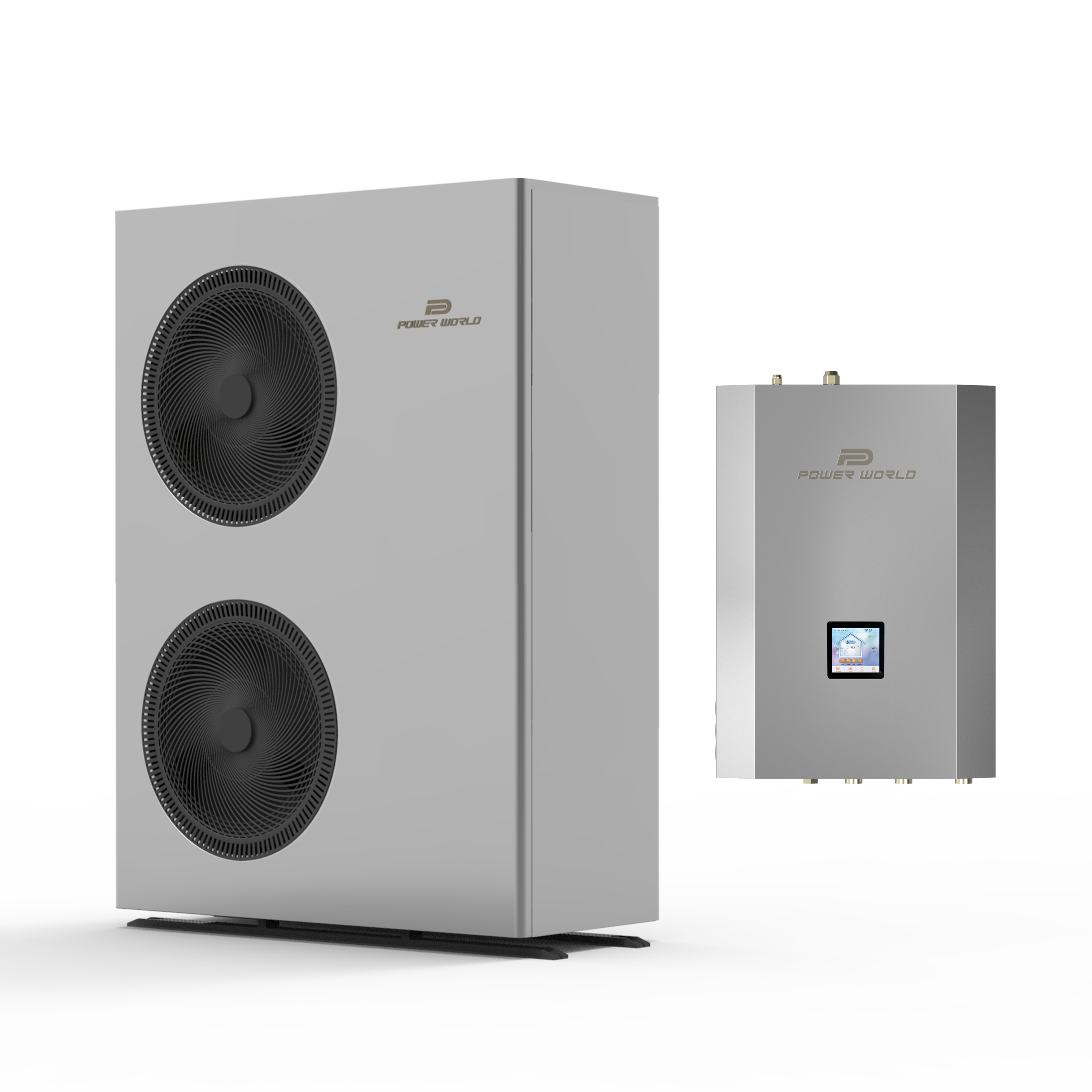

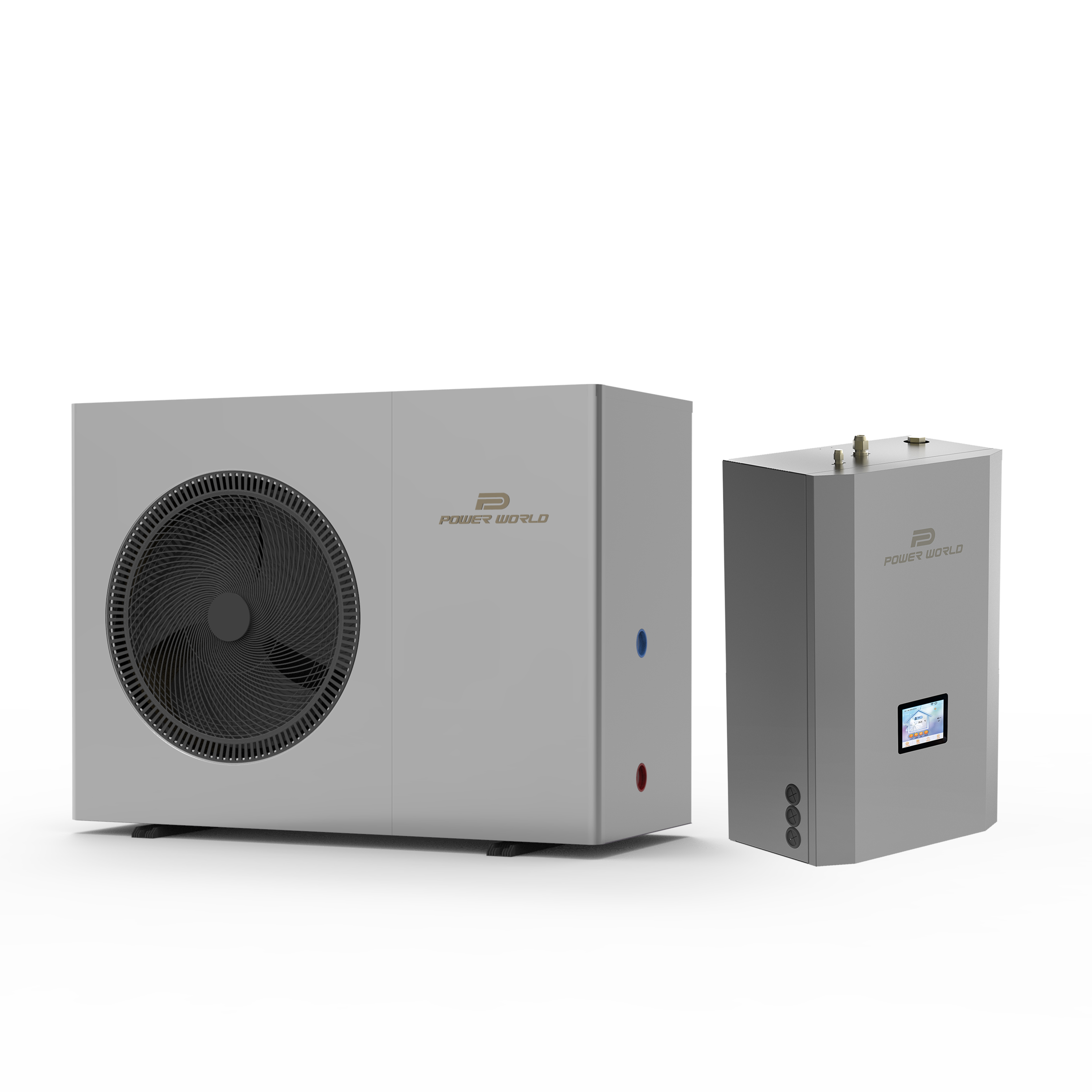

Eco Home Series R410a EVI DC Inverter Split Heat Pump

Split design with indoor unit and outdoor unit or monoblock design, easy for installation.Screw-less Appearance,Modern Compact structure,Independent IDU & Flexible Installation make the ECO HOME Split EVI DC Inverter heat pump an ideal proposition for Owners of Houses.

1.EVI compressor special designed for high water temperature.
2.Water exchanger equipped with high efficiency tube in shell heat exchanger
3.Intelligent controller and adjustment by quick mind microprocessor.

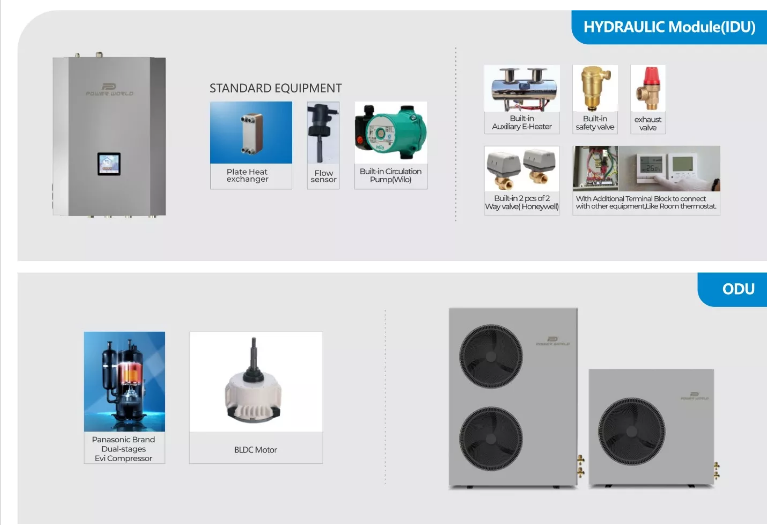

4.Split design with indoor unit and outdoor unit or monoblock design, easy for installation.
5.Automatic defrosting function included (With reverse valve inside).
6.Can be used for floor heating, fan coils, water heaters and also modern radiators.
7.With perfect system for defrosting which can let the units work under ambient temperature of -20 Centigrade 8.R410a refrigerant, environmentally friendly – Green energy, no CO2 emissions Certificate:CE, CB, RoHS, Conform to EN14825,EN14511 test standard , ISO9001, ISO14001.
OPTIONAL:Galvanized metal cabinet or stainless steel cabinet

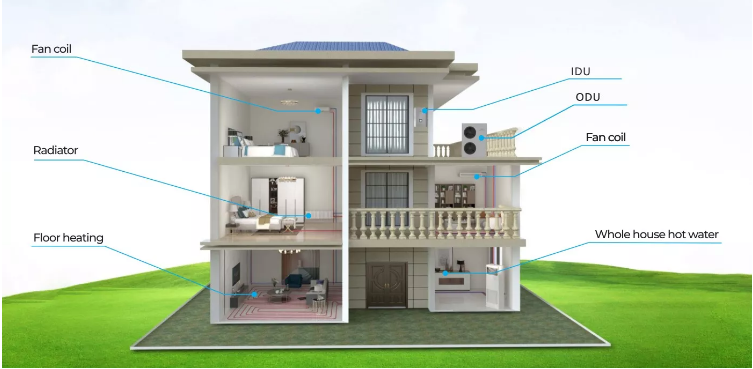

The ECO HOME SERIES Split EVI DC Inverter Units is designed specially for European Market where there Is a demand for Space heating/Cooling + Hot water,This unit can realize space heating & Sanitary hot water supply through terminal units, like the Fan coil unit, Floor coil,& Radiator, It is widely applicable to small & medium-sized apartment, large-sized villa etc.

*Full DC Inverter Technology
Adopting the most advanced low-temperature Enhanced Vapors Injection compressor technology. Split EVI heat pump delivers higher heating capacity at low evaporation temperature thereby better responding to heating requirements than normal air source heat pump, it also results in less supplementary heating to cover the full heating demand on the coldest days. It has been further optimized to enable heat pumps to efficiently produce water temperature up to 60 DC during cold winter time.

A++ Energy Label
The whole series of products are strictly comply with EN14511 standard,EUROVENT Energy efficiency Class A ans SCOP Class A++ (35C),SCOP CLASS A++(55C) With EN14825 standard

*Smart Control
The intelligent controller is adopted to realize the link age control between the heat pump unit and the terminal application end. With the Cascade function, multiple heat pumps can be controlled at once for greater operating efficiency. The WIFI APP enables users to operate their units through a smart phone wherever and whenever they are.
